In the fields of network cabling and device power supply, Power over Ethernet (PoE) technology has become widely adopted for its ability to transmit both data and power over a single Ethernet cable. In industrial environments, industrial switches are key network devices designed for harsh conditions. They are often combined with PoE technology to become core components of industrial PoE systems, so understanding the PoE switch distance limit and how to optimize deployments around it is critical. This article explores the Power over Ethernet distance limitations and how to work within or overcome them effectively.

What Is the Maximum PoE Switch Distance Limit

In PoE (Power over Ethernet) technology, the Ethernet link between the Power Sourcing Equipment (PSE) and the Powered Device (PD) has a clearly defined maximum distance limit—328 feet (100 meters). This limitation is not arbitrary; it is defined by the IEEE Ethernet standards governing PoE, including IEEE 802.3af, 802.3at, and 802.3bt. This PoE switch distance limit applies to all PoE versions and Ethernet cable types.

When a single Ethernet run exceeds this Power over Ethernet distance, issues such as power loss, voltage drop, and signal degradation may arise—affecting both data and power delivery. This can lead to unstable device operation or total network disconnection.

PoE Standards and the PoE Switch Distance Limit

There are several PoE standards, and each plays a role in determining the PoE switch distance limit. These standards define how much power can be delivered and the expected transmission performance.

• IEEE 802.3af (PoE): Offers up to 15.4W, with a maximum Power over Ethernet distance of 328 feet. Since this is based on Ethernet’s physical layer specifications, the distance limit aligns with traditional Ethernet cabling limits.

• IEEE 802.3at (PoE+): Supports up to 30W, but the PoE switch distance limit remains 328 feet, as increasing power does not affect the data layer’s transmission distance.

• IEEE 802.3bt (PoE++): Type 3 (up to 60W) and Type 4 (up to 100W). Despite higher power, the maximum Power over Ethernet distance remains fixed at 328 feet due to Ethernet’s inherent physical limits.


Factors Affecting the PoE Switch Distance Limit

Although the standard distance is 328 feet, actual deployments often fall short due to several real-world variables:

Cable Quality

The quality of Ethernet cables plays a vital role in maintaining the PoE switch distance limit. Using high-quality Cat6 or Cat6a cables with low resistance helps reduce both signal and power loss. Lower-grade cables or thinner wires (e.g., 26 AWG) introduce higher resistance, reducing the effective Power over Ethernet distance and potentially causing unstable device operation.

Environmental Conditions

Environmental factors such as high temperature, humidity, or strong electromagnetic interference (EMI) can degrade cable and device performance. These conditions may reduce the effective PoE switch distance limit, especially in industrial or outdoor settings.

Device Power Demand

The power requirements of the powered device (PD) also influence how far it can be from the switch. High-power devices consume more current, resulting in increased voltage drop over long cables. This limits the actual Power over Ethernet distance that can support full device functionality. For example, a low-power access control system may operate well at 328 feet, while a 25W PTZ camera might only function reliably within 196.85 feet (60 meters).

How to Extend the PoE Switch Distance Limit

When your project requires distances beyond the standard PoE switch distance limit, there are practical methods to extend it:

Use a PoE Extender

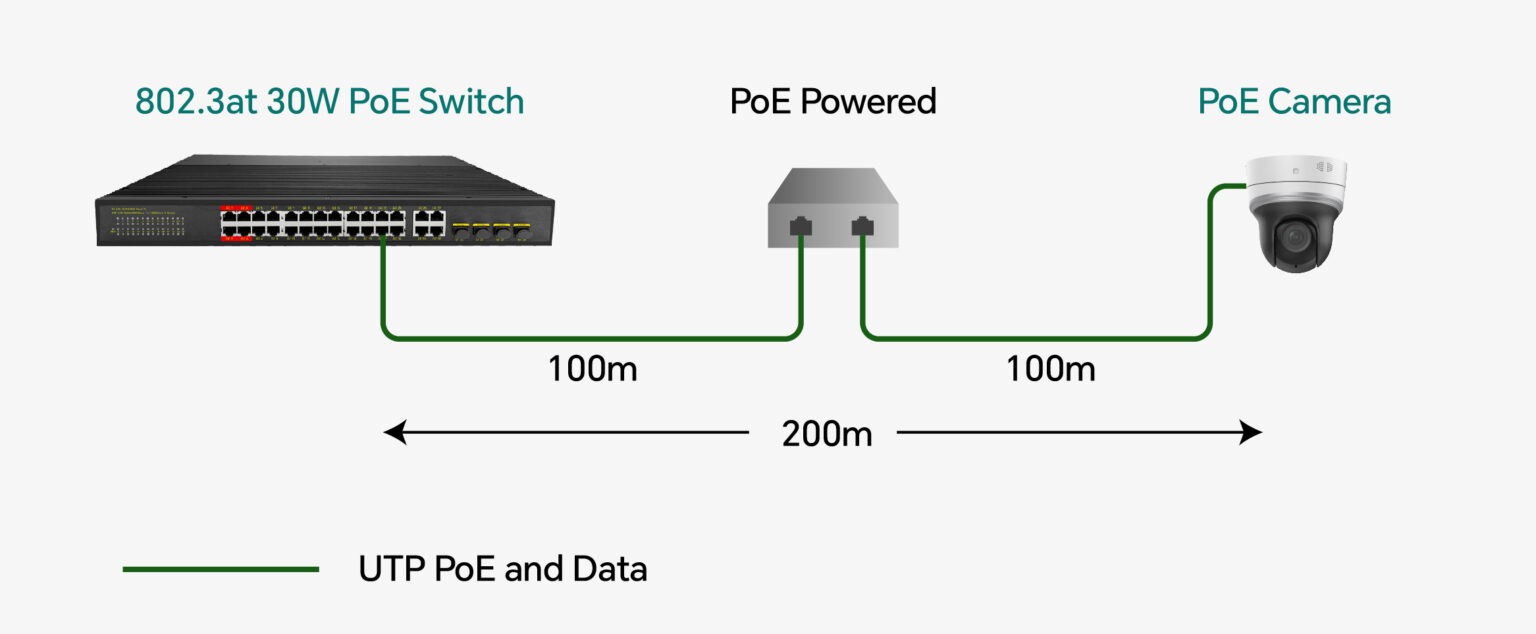

Using a PoE extender is a common method. A PoE extender receives the signal and power from a PoE switch, processes and amplifies it, and then transmits it to the next powered device, thereby extending the transmission distance. Each extender can extend the distance by approximately 328 feet. However, it is important to note that the number of extenders should not be too large, as this can affect signal stability.

Use a Fiber Media Converter

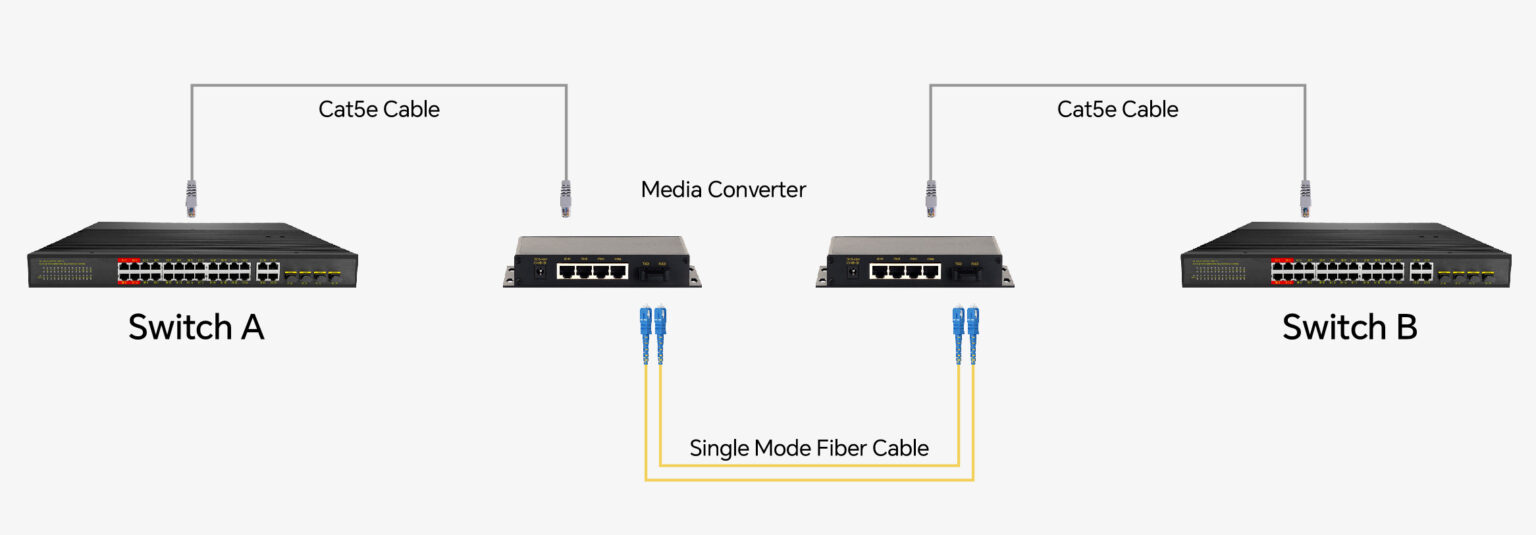

Using fiber optic transmission in conjunction with a PoE switch is also an effective method. Fiber optic cables have extremely low signal attenuation characteristics, enabling long-distance transmission. The signal from the PoE switch can be converted into an optical signal via a fiber media converter for transmission and then converted back into an electrical signal at the receiving end via another fiber media converter, connecting to another PoE switch or powered device. This allows for easy transmission over distances of several kilometers or even further.

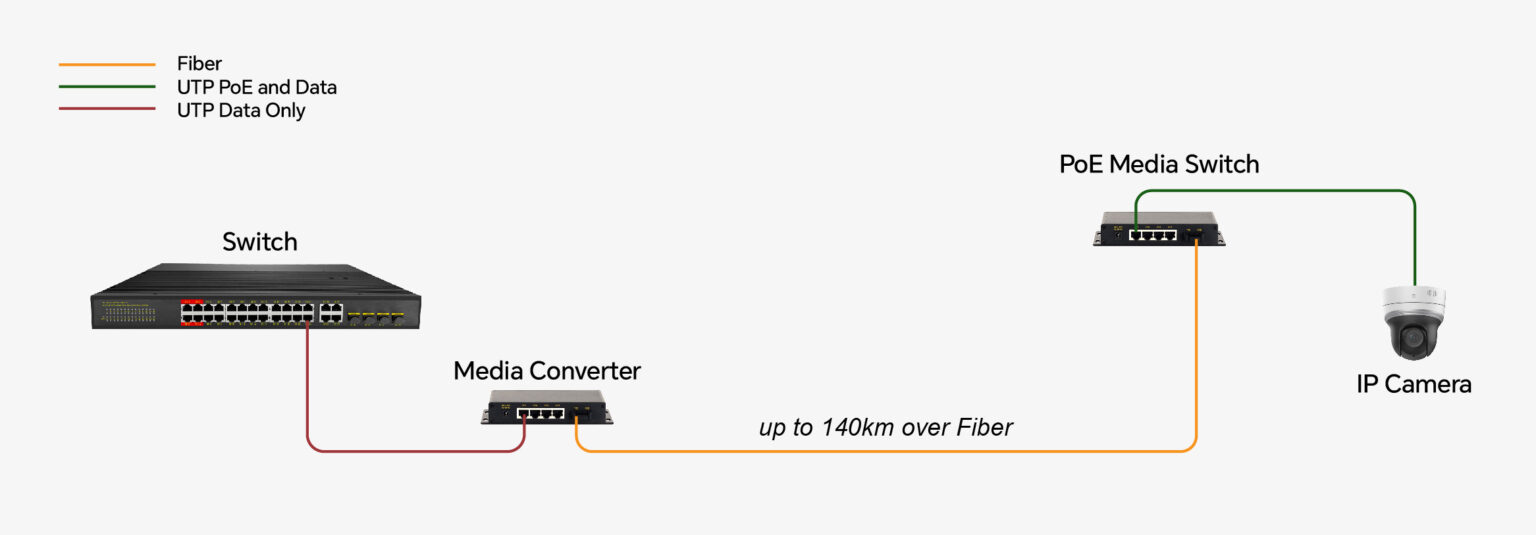

To address the limitation on the distance between the PoE switch and the PoE-powered device, another approach is to deploy the PoE switch near the powered device. If there are only a few PoE-powered devices requiring a single PoE port, the PoE switch in this scenario can be replaced with a PoE fiber media converter. By installing the PoE fiber media converter near the powered device, one electrical port can directly connect to the powered device, while the other optical port connects to the transceiver at the opposite end. This approach enables long-distance transmission over fiber while meeting the power and data transmission needs of a small number of powered devices, further expanding the solution's applicability.

Improve Cabling and Layout

Select high-quality, low-resistance CAT6/CAT6A cables to reduce signal attenuation and power loss. When laying cables, avoid high-temperature and high-interference areas to minimize environmental effects on transmission. For high-power devices, use separate power supply cables rather than connecting multiple devices in series to avoid voltage drop caused by insufficient power distribution, thereby ensuring effective transmission of signals and power over longer distances.

Conclusion

The standard PoE switch distance limit is 328 feet, as defined by Ethernet transmission properties. In real-world deployments, this Power-over-Ethernet distance may be reduced due to cable quality, environmental conditions, and device power requirements.

To support longer distances, users can use PoE extenders, fiber media converters, or optimized cabling and routing. Understanding your deployment needs and environment will help you select the best approach to ensure reliable, effective PoE system performance.
